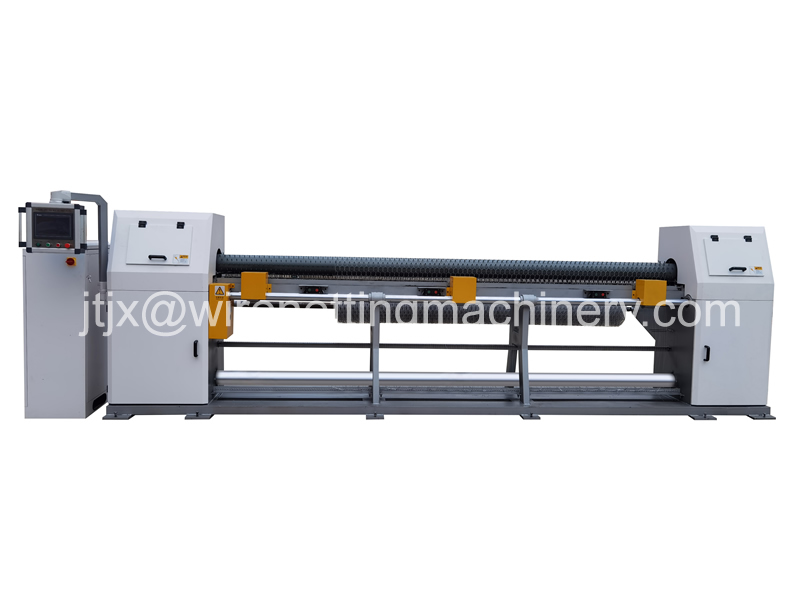

Front view of machine

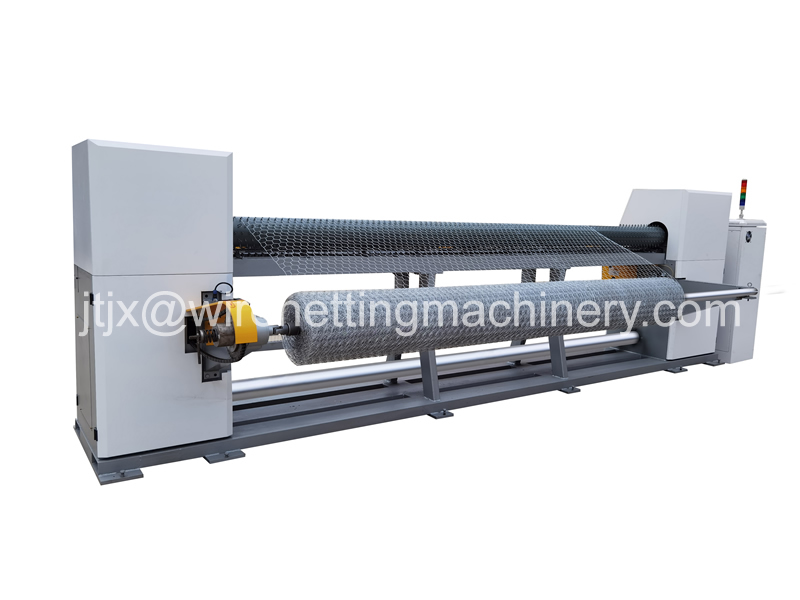

Back view of machine

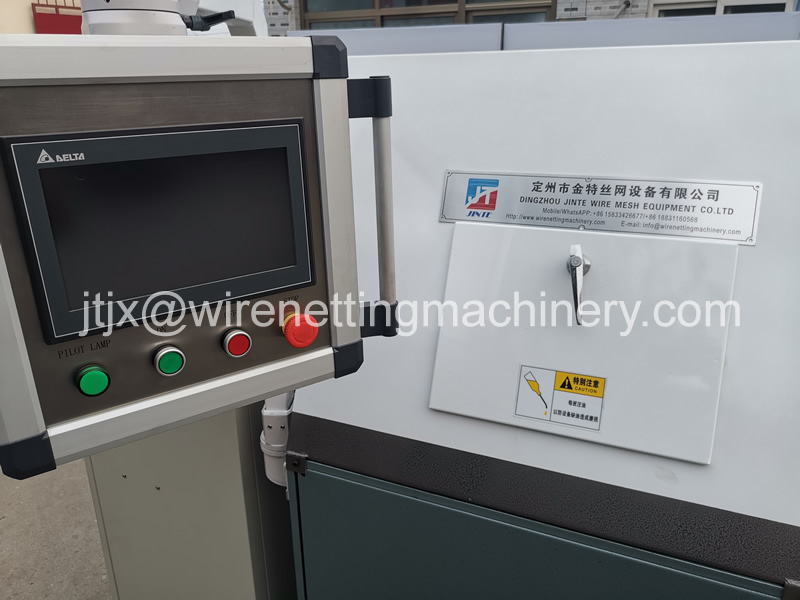

Touch screen
Electric cabinet

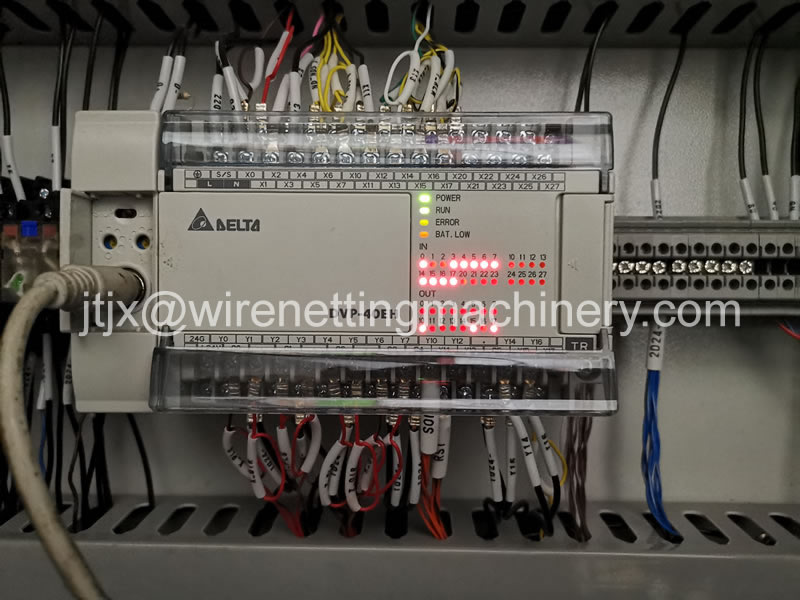

PLC

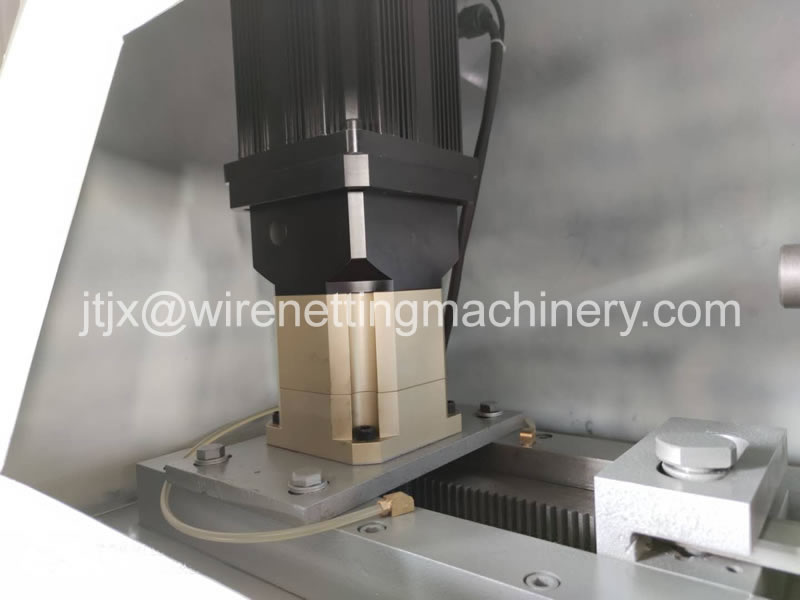

Servo motor

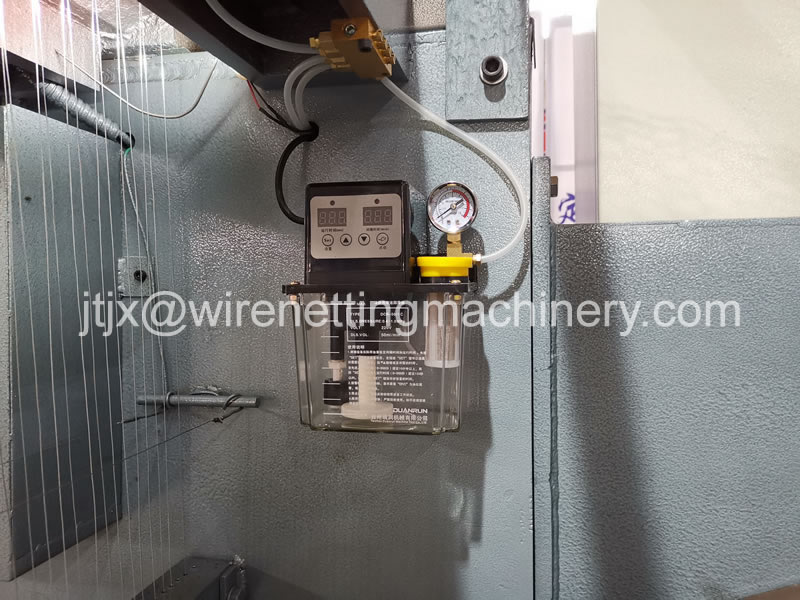

Automatic oil pump

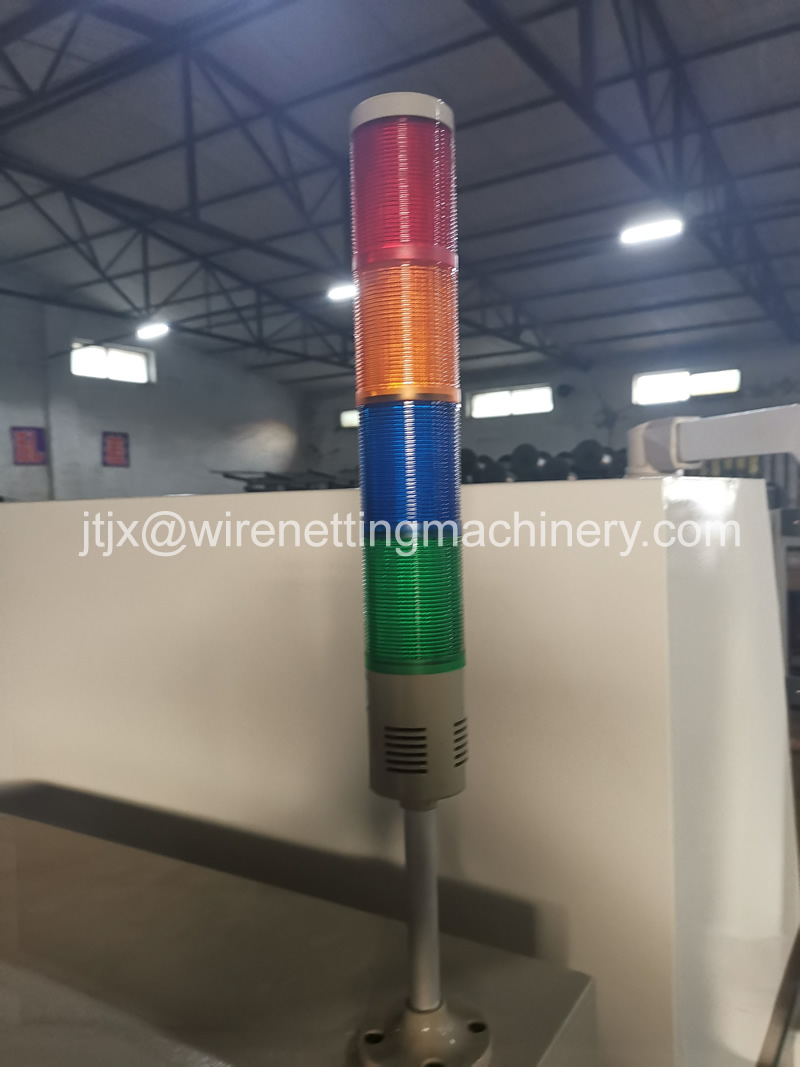

Break the net warning lightAdvantage
1. CNC hexagonal wire mesh machine adopts PLC and touch screen design. The human-machine interface is easy to operate. It uses a servo motor reducer transmission mechanism to replace traditional mechanisms such as gear cams.
2. Smooth operation, low noise, only 50 decibels.
3. The mesh is flat and uniform, which can add reinforcing ribs to the mesh to enhance the tensile strength of the mesh.
4. It can weave wire mesh at the same time, with high efficiency, weaving 65-70 meshes per hour on average.
5. Simple operation, only one employee can operate.
Product Parameters
| Model type | The mesh size(mm) | Wire diameter(mm) | The machine width(m) | Speed(m/h) | Voltage(V) | Power(kw) | Weight(t) |
| 1/2" | 15*22 | 0.35~0.7 | 2.2M 2.6M 3.3M 4.0M 4.5M | 65~220 | 220V 380V 400V 420V | 16.9 | 3.8~5.0 |
| 3/4" | 20*35 | 0.35~0.8 | |||||
| 1" | 25*38 | 0.35~1.2 | |||||
| 1.2" | 30*40 | 0.35~1.2 | |||||
| 1.5" | 40*60 | 0.5~2.0 | |||||
| 2" | 50*85 | 0.6~2.2 | |||||
| 3" | 80*120 | 0.6~2.4 | |||||
| 4" | 100*140 | 0.8~2.6 |

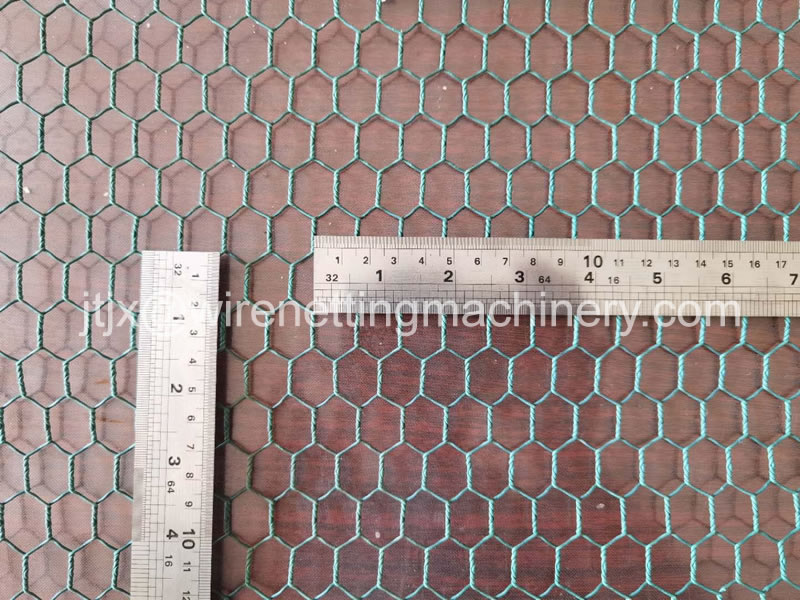

Model: 1/2"
Material: Galvanized Wire,PVC Wire,Cold-drawn Wire
Process: Positive and negative twist
Mesh size: 15*22mm ±1mm
Wire diameter: 0.35mm-0.7mm
Height dimension: 0.5-4.5 m

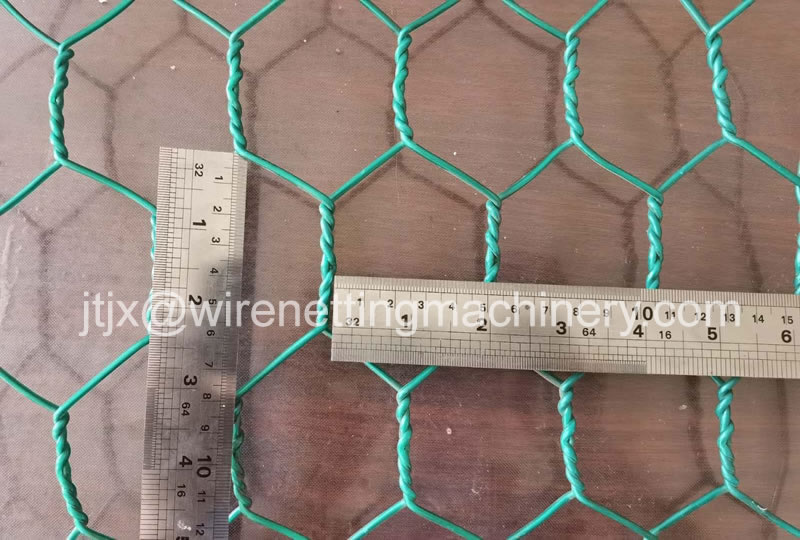

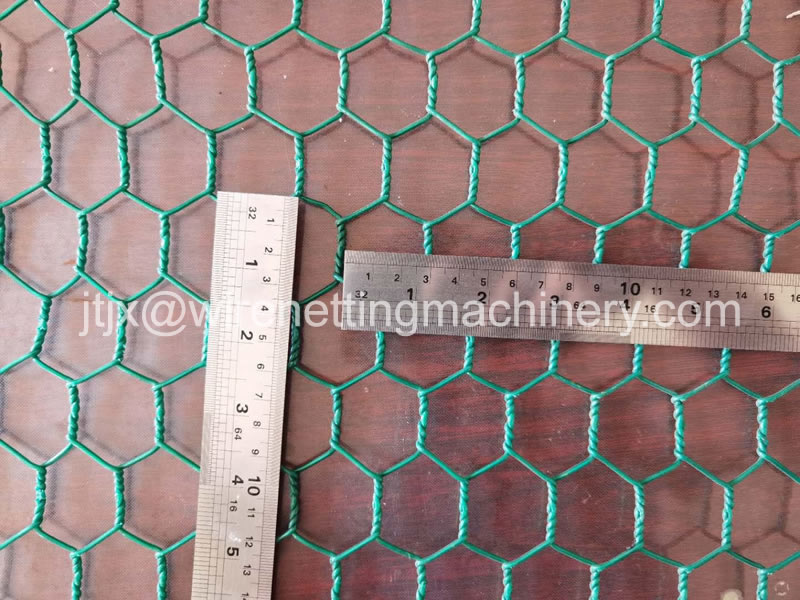

Model: 1"
Material: Galvanized Wire,PVC Wire,Cold-drawn Wire
Process: Positive and negative twist
Mesh size: 25*38mm ±1mm
Wire diameter: 0.35-1.2mm ±1mm
Height dimension: 0.5-4.5 m

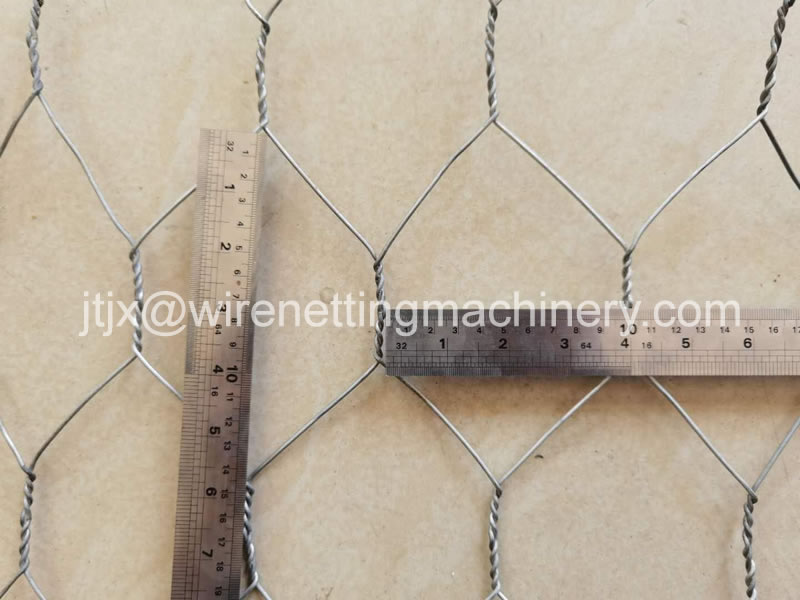

Model: 1.5"
Material: Galvanized Wire,PVC Wire,Cold-drawn Wire
Process: Positive and negative twist
Mesh size: 40*60mm ±1mm
Wire diameter: 0.35-1.5mm
Height dimension: 0.5-4.5 m

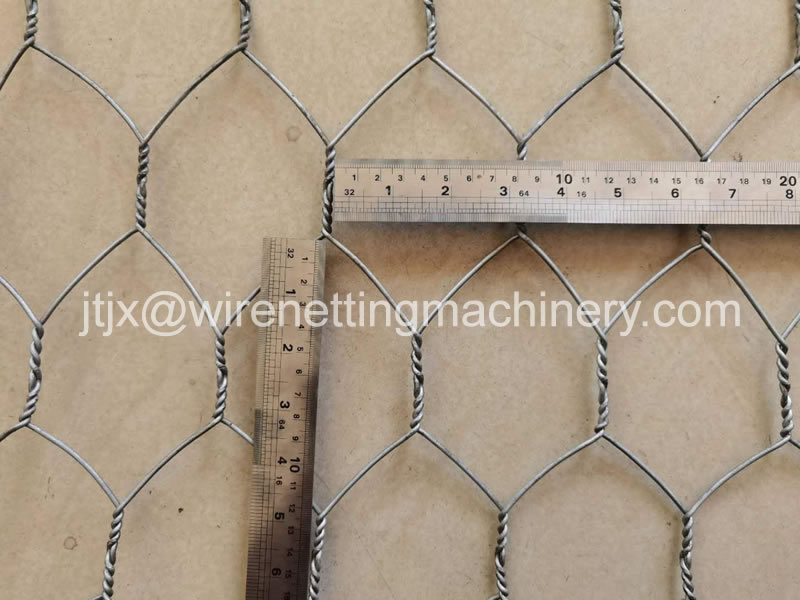

Model: 2"
Material: Galvanized Wire,PVC Wire,Cold-drawn Wire
Process: Positive and negative twist
Mesh size: 50*80mm ±1mm
Wire diameter: 0.5-1.6mm
Height dimension: 0.5-4.5 m
Model: 3"
Material: Galvanized Wire, PVC Wire,
Cold-drawn Wire, Stainless Steel Wire
Process: Positive and negative twist
Mesh size: 80*120mm ±1mm
Wire diameter: 0.5-2.2mm
Height dimension: 0.5-4.5 m
Model: 4"
Material: Galvanized Wire, PVC Wire,
Cold-drawn Wire, Stainless Steel Wire
Process: Positive and negative twist
Mesh size: 100*140m ±1mm
Wire diameter: 0.5-2.6mm
Height dimension: 0.5-4.5 m
Feature of product
Hexagonal nets are cheap and widely used in farm fences, breeding, construction, flower arrangements, etc.
Application
