Gabion Mesh MachineDescription

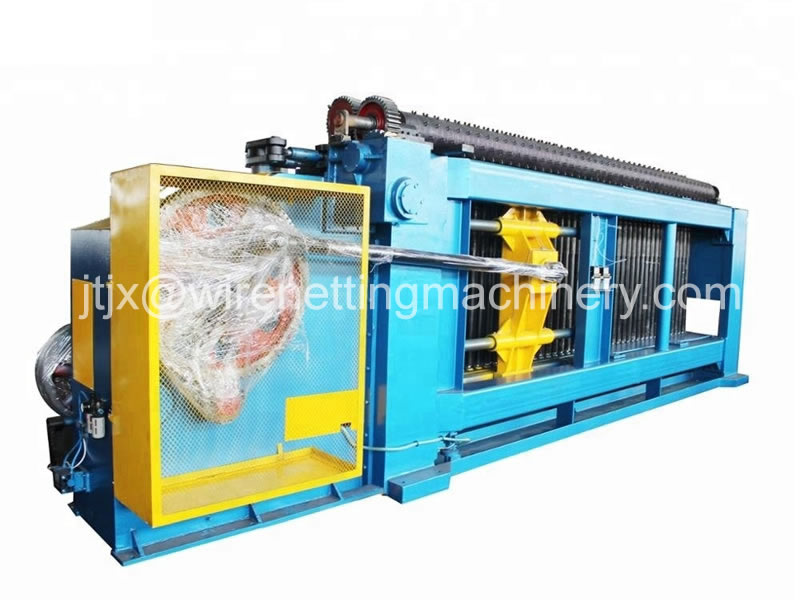

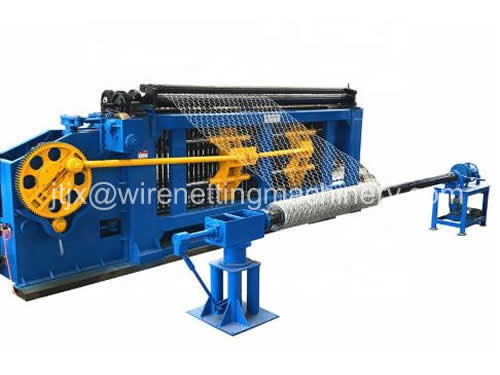

Hexagonal wire netting(Gabion mesh)machines are specially designed to produce the large size and heay-duty hexagonal wire meshes for the fence and gabions. It has 3 standard width 2.4m, 3.2m and 4.0m; for meshes 60×80mm, 80×100，100X120mm and 120×150mm.

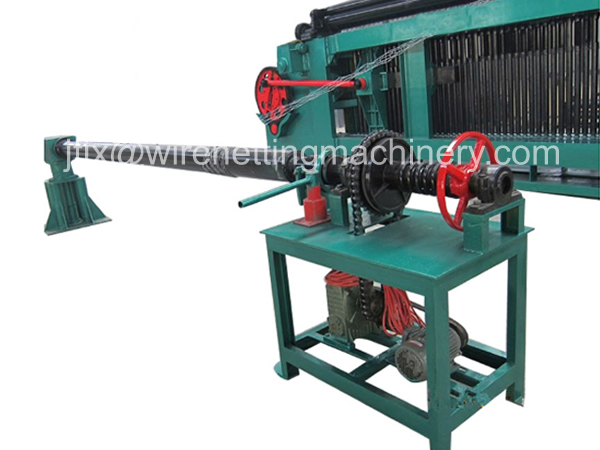

The machine is easy in operation and maintenance and is a high production efficiency machine. The hexagonal netting machine comes with wire spool and payoff(option), wire tension device, netting station with work platform, air compress system and lubrication system and winding station. We can manufacture gabion machine according to customer request.
Advantage of the machine
1. New type double rack drive gabion mesh machine
2. High efficiency: theoretic output=200-250m/h
3. PLC control system touch screen(Option)
4. Infrared ray safety(Option)
5. Automatic stop system (Option)
6. Automatic oil system
7. The knitting machine is satisfied with normal wire netting machine's requipment, and also can meet weaving large diameter hexagonal mesh's demand.
8. The design is innovation in China, it can weave the wire 4.0mm easily and speed as normal wire diameter.
Product Parameters
| Mesh Size (mm) | a) 60x 80mm and 120 x 150mm b) 80 x 100mm and 80 x 120mm c) 80 x 100mm and 160 x 180mm d) 100 x 120mm and 100 x 140mm e) 50 x 70mm and 100 x 140mm f) 120 x 150mm g)180 x 200mm and more one machine can produce one size |
| Max Netting Width | 4.5m |
| Max PVC Wire diameter | 4.2mm |
| Power | 22 kw |
| voltage | 380 V, 50Hz |
| Size | 5200 x 1400 x 2400 mm |
| Weight (approx) | 12 Ton |
| Max. Output | 200 m / hour |
| Automatic Stop System | Included |
| Warranty | 18 months |
