Chain Link MachineDescription

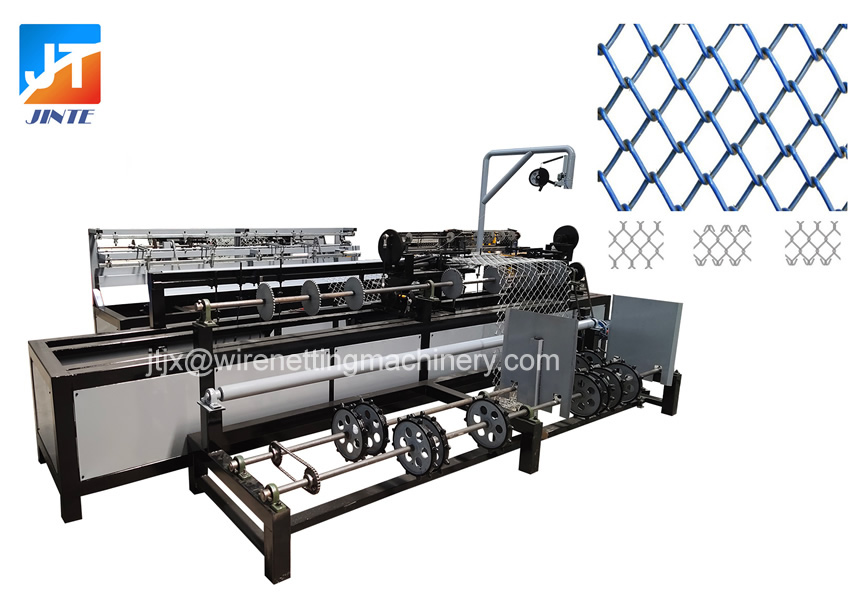

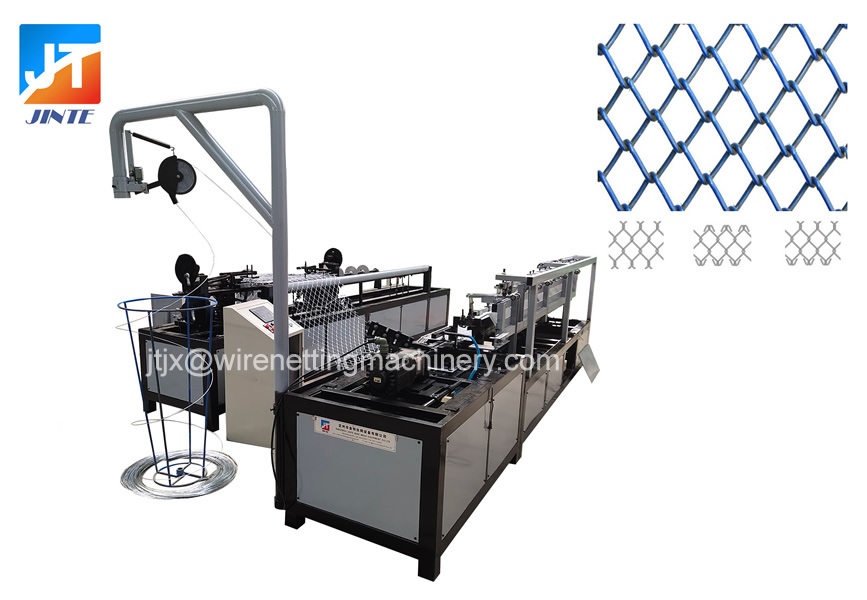

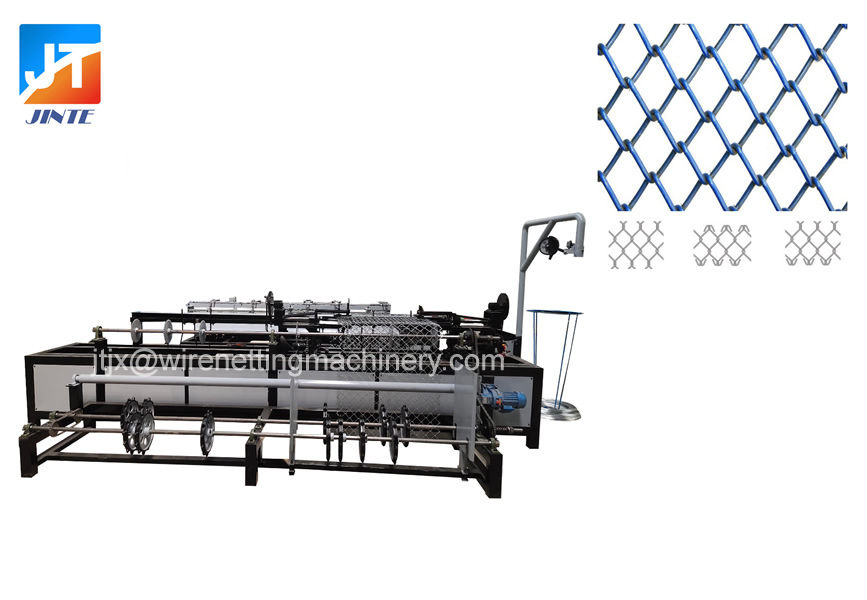

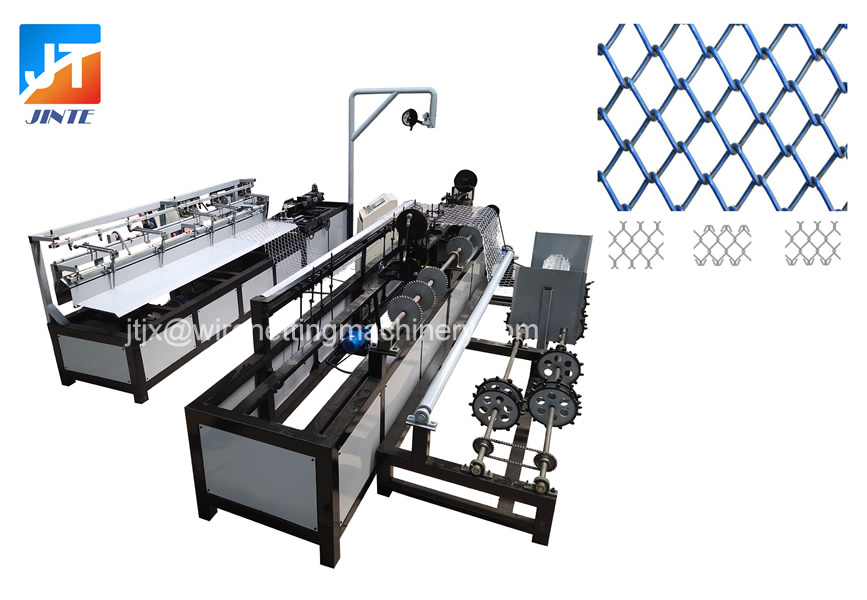

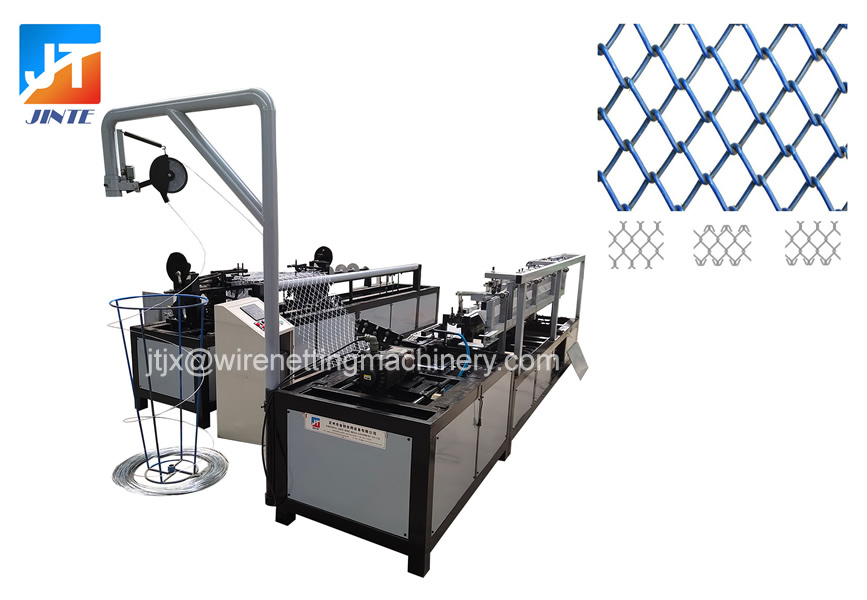

Chain link fence making machine, also called diamond mesh machine, spiral fence machine, cyclone fence machine, orthorhombic machine. Our fully automatic chain link fence machine is higher speed than the similar machinery. This chain link fence machine is running smooth and reliable performance, the product is flat.
Advantage of the machine
1.Touch screen and Mitsubishi PLC control system.
2.Delta Servo motor and Planetary gear box.
3.Single mold for double spirals.
4.Additional Alarm and Emergency Button for convenient operation.
5.Knuckled and twisted mesh sides for option.
6.Roll the mesh automatically.
The function of the product
Chain link fence or diamond mesh is used as fences for playground and gardens, super highway, railway, airport, port, residence and so on.
Product Parameters
| Model | Single-wire Fully qutomatic chain link fence machine | Double wire Fully automatic chain link fence machien | |||||||
| Wire Dia. | 1.5~5.0mm | 1.8*5.0mm | |||||||
| Hole Size | 25*25mm~120*120mm | 30*30mm~120*120mm | |||||||
| Material | Galvanized wire,pvc wire | Galvanized wire,pvc wire | |||||||
| Width | 2m | 3m | 4m | 2m | 3m | 4m | |||
| Capacity | 20~120m^2/h | 30~160m^2/h | |||||||
| Power | 3.8kw/h | 5.5kw/h | |||||||
| Mould | 4 set mould for free | ||||||||
| Size(L*W*H) | 3.8*3.2*1.5m | 4.8*3.2*1.5m | 5.8*3.2*1.5m | 5*2.2*1.7m | 6*2.2*1.7m | 7*2.2*1.7m | |||
| Weight | 1.7T | 1.8T | 1.9T | 1.9T | 2.0T | 2.1T | |||
| Warranty | One year | ||||||||
| Operation | One person control 2 machine | ||||||||
