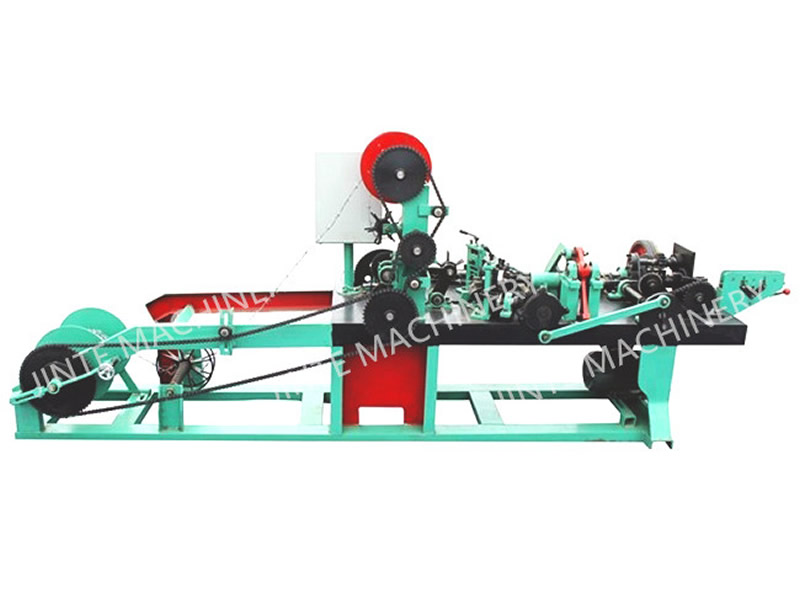

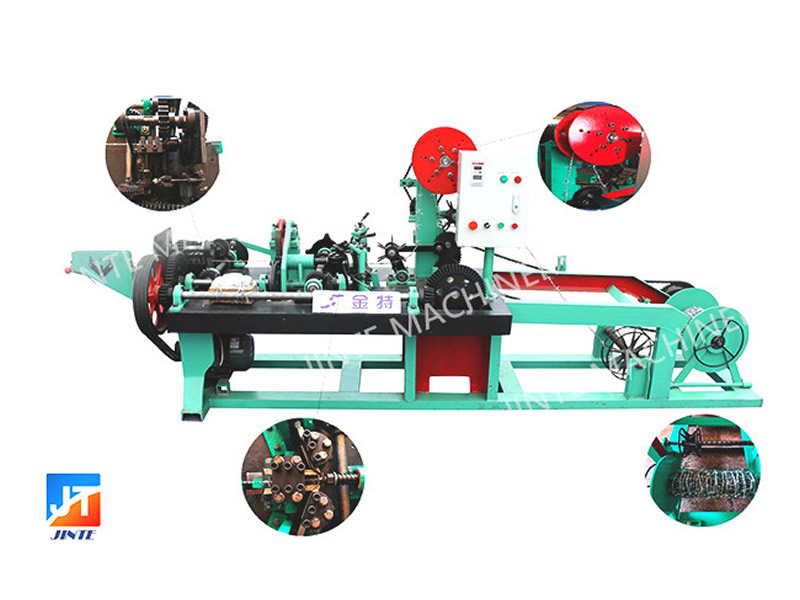

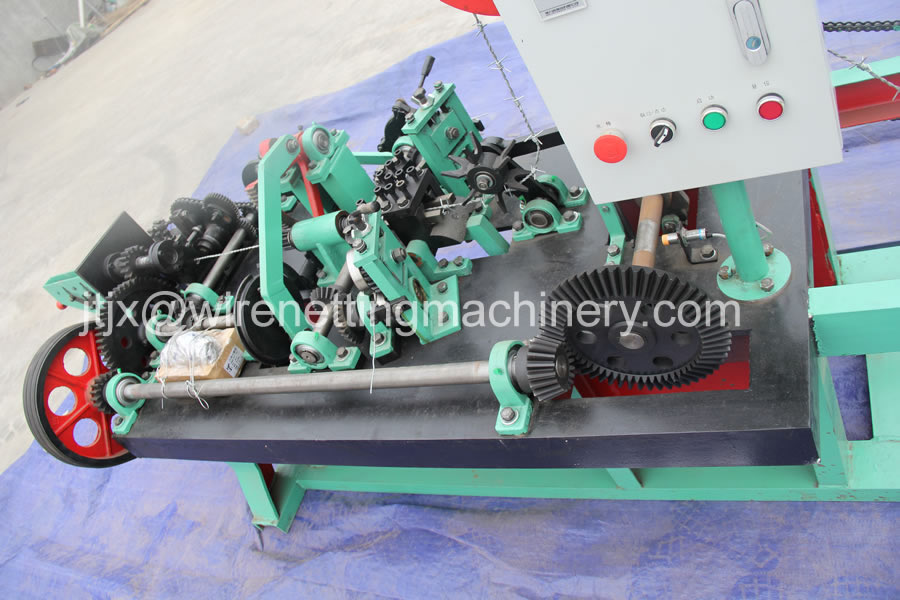

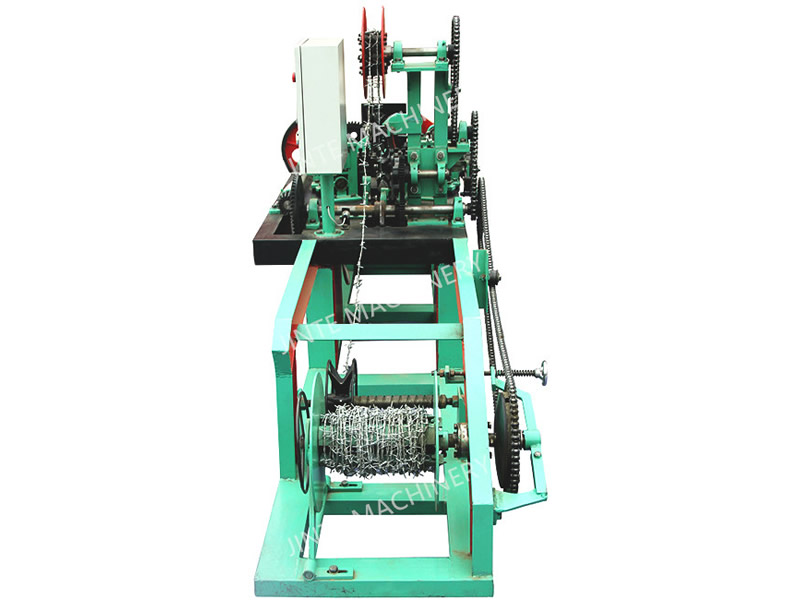

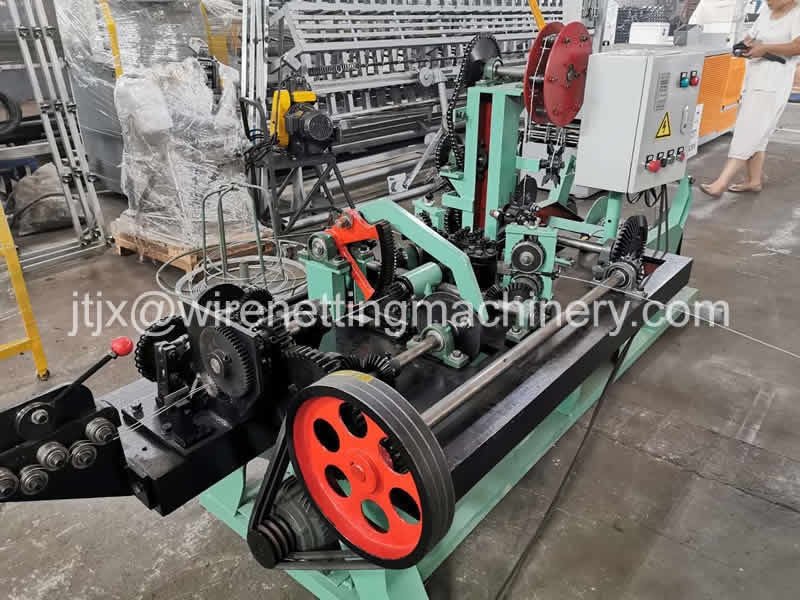

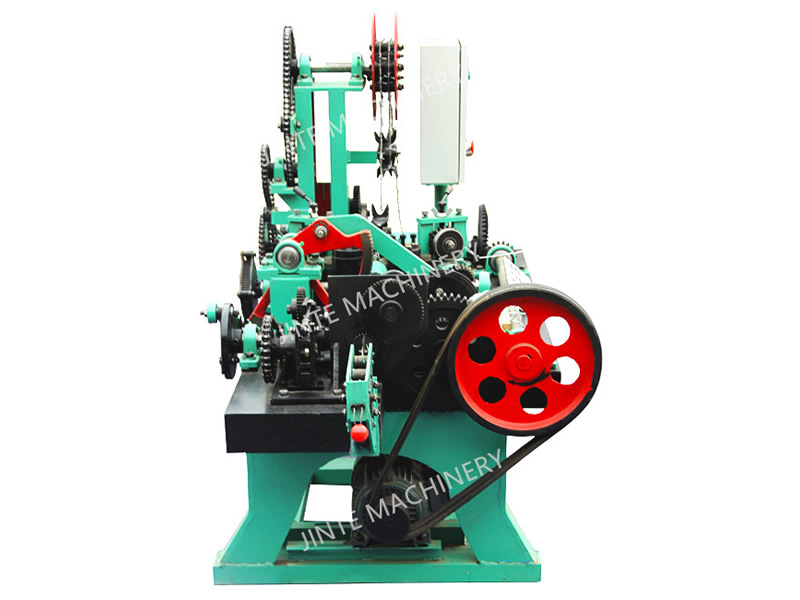

Barbed Wire MachineDescription
It is the specialized machine for manufacturing barbed wires. The machine has high efficiency and quality with compact structure, low noisy, easy operation and regulation, convenient maintenance and low power consumption, which is suitable for producing all kinds of barbed wires.
The material can be galvanized wire, pvc coated wire, low carbon wire etc.
Advantage of the machine
1. Manually installation, Easy to set up;
2. Steel cover on driving shaft for safety operation;
3. Saving materials and high capacity;
4. Counter to count the number of barbs and calculate length of barbed wire.
5. Button switches and leveler to start and stop machine easily.
6. Quick and easy roll extraction from the machine.
7. Guiding system to avoid wire snarls.
The function of the product
Widely used in military field, Prisons, Detention houses, Government Buildings, National Security Facilities. Fencing of Residences, Villa Wall and Windows, Express Way, Railway, National Border Lines. It is also used for grassland border, railway, highway isolation protection, etc.
Product Parameters
| Model | CS-A | CS-B | CS-C | |
| Motor power | KW | 2.2 | 2.2 | 2.2 |
| Main drive shaft speed | R/min | 402 | 355 | 355 |
| Strand wire diameter | mm | 1.6-3.0 | 2.0-3.0 | 1.6-2.8 |
| Barbed wire diameter | mm | 1.6-2.8 | 1.6-2.8 | 1.6-2.8 |
| Barbed pitch | Inch | 3”/4”/5”/6” | 3”/4”/5”/6” | 4”/5”/6” |
| Twisted number | 3-5 | 7 | ||
| Raw material | Galvanized steel wire or PVC coated wire | |||
| Production | 70kg/h 20mtrs/min | 40kg/h 17mtrs/min | 40kg/h 16.5mtrs/min | |
| Total weight | KG | 1200 | 1000 | 1000 |
| Dimension | mm | 1950*950*1300 | 3100*1000*1150 | 3100*1000*1150 |
| 1760*550*760 | ||||
